ImageIR® 9300 Z
The high-end infrared camera ImageIR® 9300 Z with 30× zoom lens allows effortless handling of complex reconnaissance and surveillance tasks.
Cooled detectors with up to (1,280 × 1,024) IR pixels
Detection range of 15 km for persons
Detection range of 18 km for vehicles
Customisable software interface offers time coded real-time playback
Efficient measurement of smallest structures on large-scale objects
Precise detection of smallest temperature differences
Precise, remote and quick motorised focusing
Detection of vehicles and persons at very large distances
Most detailed imaging of measurement objects
Unlimited Flexibility in Thermal Imaging with Zoom
Motorized zoom lenses in general
Radiometric zoom lens specialties
Specific motorized zoom camera advantages
Applications for infrared zoom cameras in detail
Infrared Detector Interface Boosts Camera Full-frame Rate
With the cameras ImageIR® 9300 Z of the infrared camera series ImageIR® InfraTec presents a sophisticated long range infrared camera system in combination with an incredibly powerful zoom lens. State-of-the-art InSb detector technology with a resolution of (1,280 × 1,024) IR pixel offers most sensitive, high-resolution imaging capacity for 24/7 operation even through fog, smoke, day and night. Frame rates of up to 100 Hz support demanding imaging, tracking and monitoring tasks. The detection range of these infrared camera models is outstanding: vehicles can be detected up to 18 km and persons up to 15 km.
The rugged and exact power zoom together with the high-performance 30× zoom lens achieves a continuously adjustable field of view from (39.8 × 32.3)° down to (1.3 × 1.0)° with a detector format of (1,280 × 1,024) IR pixels. Therefore, also objects being far away can be displayed with a high-resolution infrared image. The customisable software interface offers time coded real-time playback.
Application Areas ImageIR® 9300 Z
Long range border guard surveillance
Harbor protection
Reconnaissance
Long-range tracking and monitoring
Environmental and animal monitoring
Technical Specifications
| Spectral range | (3.6 … 4.9) µm |
| Pitch | 15 µm |
| Detector | InSb |
| Detector format (IR pixels) | (1,280 × 1,024) |
| Image recording principle | Snapshot |
| Readout mode | ITR / IWR |
| Aperture | f/5.5 |
| Detector cooling | Stirling cooler |
| Temperature measuring range | (-10 … 200) °C, up to 500 °C* |
| Temperature resolution at 30 °C | 0.02 K |
| Frame rate | Up to 50 / 200 / 390 / 3,400 Hz |
| Window mode | Yes |
* Depending on model
** In selected measurement ranges
Configure Your Camera System
Each measurement or testing task has its own characteristic basic conditions. For getting optimal results camera, detector and lens have to be perfectly matched to one another. The field of view calculator helps you to determine the appropriate combination.

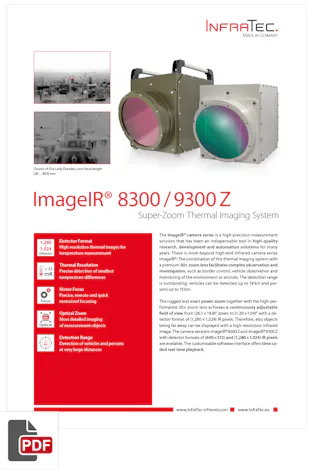

Product Flyer
